| Specific parameters | |
| Series | Alloy grade |
| 1000 series | 1050,1060,1070,1100,1200 |
| 3000 series | 3003,3004 |
| 4000 series | 4006 |
| 5000 series | 5052,5083,5754,5454,5005,5A02,5A05 |
| 6000 series | 6061,6082,6083 |
Our high quality Aluminum circle sheet can be used in the production of a variety of cookware products,such as for deep drawing cooking pot、spinning quality for kitchen utensils、for aluminum Non stick cookware、for cookware bottom、for non-stick cookware、for non-stick pan、for non-stick pan、for kitchenware etc.
Features :
1.Alloy 1050 1060 1070 1100 1200 Aluminum Circle, deep drawing quality, good spinning quality,
excellent forming and anodizing, no four ears;
2.Excellent reflectivity, good for Polishing;
3.Good anodized quality, suitable for hard anodizing and enameling;
4.Clean surface and smooth edge, hot rolled quality, fine grains and after deep drawing no looper lines;
5.Excellent pearl color anodizing.
1000 series aluminium circle is currently being used to make below aluminium products :
| Aluminium Circle Type | Final Products | Products Images |
| 1060 O,H12,2mm--3mm | Fry Pans,Pizza Pans,Works,Electric Skillets | |
| 1100 O,0.7mm--2mm | Stock Pots | |
| 1100 O,3mm--5mm | Cookware Bottom,Stainless Cookware,Bottom Plates | |
| 1100 O,2mm--4mm | Coated Cookware | |
| 1100 H14,0.7mm--2mm | Cookware Cover | |
| Plain aluminium circle,1100 O,0.5--1.5mm | Plain aluminium lamp shade | |
| Anodized quality aluminium,circle 1100 O,0.5--1.5mm | Anodized aluminium lamp shade | |
| Coated aluminium circle,1100 O,0.5--1.5mm | Coated aluminium lamp shade |
(2) 3003 3004 Aluminum Circle
Features :
1.Alloy 3003 3004 Aluminum circle, deep drawing quality, good spinning quality,excellent forming and anodizing, no four ears;
2.Excellent reflectivity, good for Polishing;
3.Good anodized quality, suitable for hard anodizing and enameling;
4.Clean surface and smooth edge, hot rolled quality, fine grains and after deep drawing no looper lines;
5.Excellent pearl color anodizing.
| Aluminium Circle Type | Final Products | Products Images |
| 3003 O,2mm--4mm | Pressure Cookers,Rice Cookers | |
| 3003 O,2mm--4mm | Coated Cookware |
(3) 4006 Aluminum Circle
Signi aluminium manufactures alloy 4006 aluminium circle with excellent enameling and good strength that can be subject to further treatment by the following methods: deep drawing, spinning and subsequently enamelling or teflonising.
Alloy: 4006
Temper: H22,O
Thickness: 0.8~9.0mm
Diameter: 80~1200mm
Surface：Mill finish
| Section | Alloy | Characteristics | Application |
| 4000 series | AA4006 | Excellent enameling and good strengt |
Cookware : Enameling, Non-stick Cookware |
Material Properties
Base Metal Price ：16 % rel
Density ： 2.7 g/cm3 (170 lb/ft3)
Elastic (Young's, Tensile) Modulus ： 72 GPa (10 x 106 psi)
Elongation at Break ： 4.6 %
Modulus of Resilience (Unit Resilience) ： 69 kJ/m3
Poisson's Ratio ： 0.33
Specific Heat Capacity ： 890 J/kg-K
Strength to Weight Ratio ： 52 kN-m/kg
Tensile Strength: Ultimate (UTS) ： 140 MPa (20 x 103 psi)
Tensile Strength: Yield (Proof) ： 100 MPa (15 x 103 psi)
Thermal Expansion ： 22 µm/m-K
Unit Rupture Work (Ultimate Resilience) ： 5.8 MJ/m3
Features :
1.Alloy 4006 aluminium circle with excellent enameling and good strength
2.Wide range of selection on circles' size including customized shape and size.
3.Excellent reflectivity, good for Polishing;
4.Excellent deep drawing and spinning quality.
5.Good anodized quality, suitable for hard anodizing and enameling;
6.Clean surface and smooth edge, hot rolled quality, fine grains and after deep drawing no looper lines;
7.Excellent pearl color anodizing.
8.RoHS and REACH compliance
9.Well-Protected Packing
Signi Aluminium manufactures alloy 5052 5083 5754 5454 5005 5A02 5A05 aluminium circle with with higher strength and excellent in forming and corrosion resistance that can be subject to further treatment by the following methods: deep drawing, spinning,etc.
Alloy: 5052 5083 5754 5454 5005 5A02 5A05
Temper: O, H12, H14,H16,H18,H22,H24,H26,H32,H34
Thickness: 0.4~150mm
Diameter: 80~1200mm
Surface：Mill finish
Features :
1.Alloy 5052 5083 5754 5454 5005 5A02 5A05 aluminium circle with higher strength and excellent in forming and
corrosion resistance
2.Wide range of selection on circles' size including customized shape and size.
3. Excellent reflectivity, good for Polishing;
4.Excellent deep drawing and spinning quality.
5.Good anodized quality, suitable for hard anodizing and enameling;
6.Clean surface and smooth edge, hot rolled quality, fine grains and after deep drawing no looper lines;
7.Excellent pearl color anodizing.
8.RoHS and REACH compliance
9.Well-Protected Packing
5052 5083 5754 5454 5005 5A02 5A05 Aluminium Alloy circle Intended uses :
making Spare parts, Rocket bottom,Pressure Vessel,Oil tanker cover,Cover in outdoor,etc.
5052 5083 5754 5454 5005 5A02 5A05 Aluminium circle production line :
1.Prepare the master alloys
2.Melting furnace :put the alloys into the melting furnance
3.D.C.cast aluminum ingot:To made the mother ingot
4.Mill the aluminum ingot:to make the surface and side smooth
5.Heating furnnace
6.Hot rolling mill:made the mother coil
7.Colding rolling mill:the mother coil was rolled as the thickness you want to buy

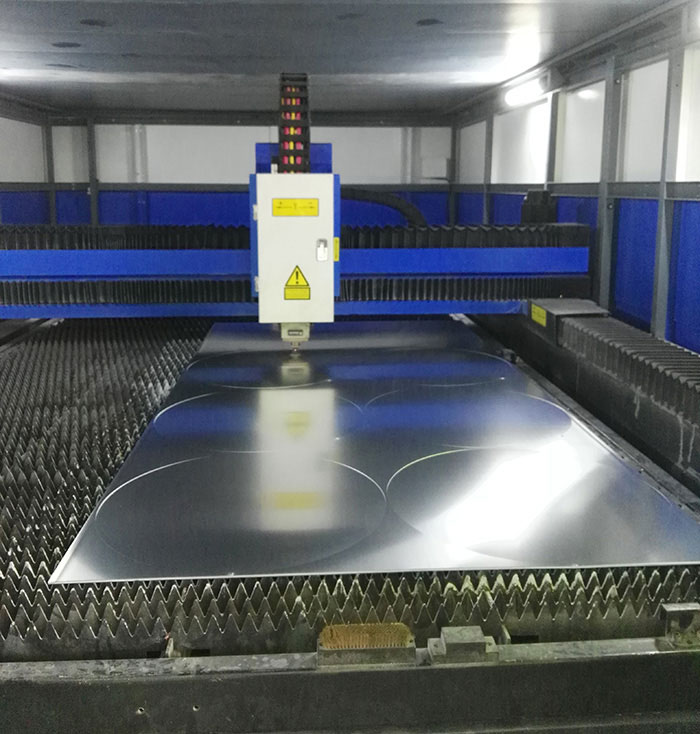

8.Punching process:become the size what you want
9.Annealing furnace:change the temper
10.Final inspection
11.Packing:wooden case or wooden pallet
12.Delivery

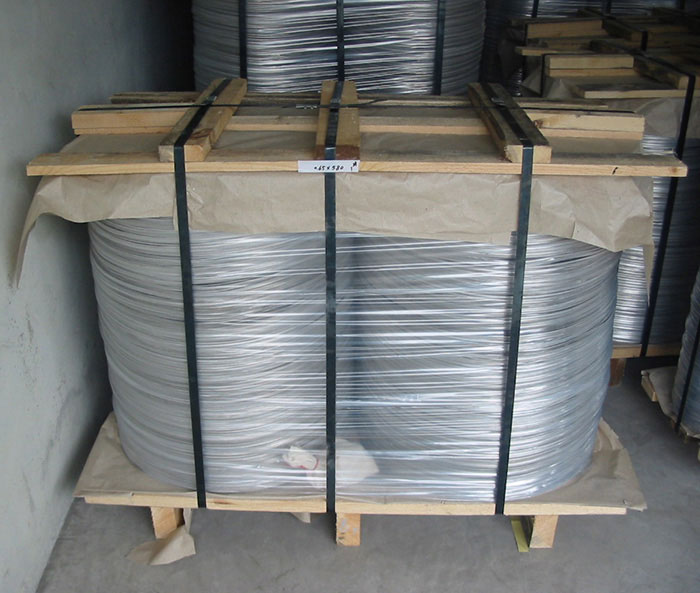

5052 5083 5754 5454 5005 5A02 5A05 Aluminium circle package :
1.Put the driers side the aluminium circle , keep the products dry and clean.
2.Use the clean plastic paper , packing the aluminium circle , keep good sealing.
3.Use the snakeskin paper , packing the surface of the plastic paper , keep good sealing.
4.Next , There are two ways of packaging :
One way is wooden pallet packaging , using the crusty paper packing the surface ;
Another way is wooden case packaging , using the wooden case packing the surface.
5.Final , lay the steel belt on the wooden box 's surface , keep the wooden box fastness and secure.
1.Good quality of deep drawing aluminium circle , and can maintain semi-specular finish with a
65% minium total reflectivity after bright dip and anodize.
2.Henan Signi speciality is in deep drawing quality . Grain size is tightly controlled to minimize
the "orange peel effect " , The "orange peel effect" is a rough surface,like the surface of an orange peel,
which often occurs after deep drawing. Signi tightly controls the chemistry and heat treating to
maximize the elongation that allow the materials to stretch more.
3.Henan Signi is a major aluminium circle producer of bottom plates , Signi has been producing impact bonded bottom plates in high volumnes for more than 10 years.
(5) 6061 6083 6082 Aluminium Circle
Signi Aluminium manufactures alloy 6061 6083 6082 aluminium circle with Heat treatable alloy with excellent strength that can be subject to further treatment by the following methods: deep drawing, spinning,forming etc. 6061 6083 6082 aluminum circles ( aluminum round sheet ) is more convenient for the production of conventional products than the rectangular sheet.
Our 6061 6083 6082 Aluminium Circle sheet has T651 temper, indicating it has been solution heat treated followed by a minimal stretching to reduce stresses in the material. The material was then artificially aged to allow the alloying elements to precipitate out of the material, to give immediate maximum strength.
Alloy: 6061 6083 6082
Temper: O, T4, T451, T42, T6,T651,T62
Thickness: 10~150mm
Diameter: 80~1200mm
Surface：Mill finish , Mill finished
Anodize: silver, champagne, light bronze, dark bronze, black, light titanium, dark titanium.
Electrophoretic coated: silver, champagne, bronze, black, light bronze, dark bronze.
Powder spray coated: normal color, special color.
Fluorocarbon powder spray coated: normal color, special color.
Acrylic paint coated: normal color, special color.
Wood grain coated: import paper, domestic paper.
Features:
1.Alloy 6061 aluminium circle with Heat treatable alloy with excellent strength
2.Wide range of selection on circles' size including customized shape and size.
3. Excellent reflectivity, good for Polishing;
4.Excellent deep drawing and spinning quality.
5.Good anodized quality, suitable for hard anodizing and enameling;
6.Clean surface and smooth edge, hot rolled quality, fine grains and after deep drawing no looper lines;
7.Excellent pearl color anodizing.
8.RoHS and REACH compliance
9.Well-Protected Packing
6061 6083 6082 Aluminium Alloy circle Intended uses:
Automobile :Car Wheels, Pressure Vessel, Parts,etc.
Application
Making cookware, utensils, Non-stick pans/pots, Bowl or cup, traffic sign ,pizza trays, pie pans, cake pans, covers, kettles, basins, fryers, light reflectors and so on
We are a manufacturer & exporter of 6061 t6 aluminum circle for more than 13 years with reliable quality, competitive price and fast delivery.
Our good quality is built on superior mechanical equipment, imported from Germany, Japan, Italy, etc. We have certifications ISO9001:2008 and others to control our quality, so we have received lots of reputations from our customers especial Europe.
